Concrete Pump Outrigger Pads

Boom pump truck manufacturers have prepared for that shifting center of gravity inherent in this specialty work by including built-in concrete pump outrigger pads that provide stability through the full range of the swing. Bigfoot‘s outrigger pads come in many sizes and options to assist in increasing stability and, above all, to keep your operators and ground crew safe.

Our Custom Composite material is engineered with consistent properties and guaranteed for life.

Our wood pads are a strong, ridged material and an econo-friendly renewable resource that has been battle-tested in the field for decades.

Custom Composite Pads Premium (Wood) Pads
2 Inch: Custom Composite Pads
Thickness Shape Size (Inches) Part Number Square Inches Weight Vertical Load Capacity 45 Degree Load Capacity Crush rating Bigfoot Price
2 inch 24x24 P242420 576 40 lbs. 80,000 40,000 500 Request a Quote
2 inch 30x30 P303020 900 62 lbs. 95,000 47,000 500 Request a Quote
2 inch 18x48 P184820 864 60 lbs. 75,000 37,000 500 Request a Quote

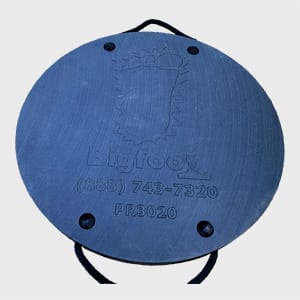

2 inch 30 PR3020 693 48 lbs. 85,000 42,000 500 Request a Quote
2.5 Inch: Custom Composite Pads
Thickness Shape Size (Inches) Part Number Square Inches Weight Vertical Load Capacity 45 Degree Load Capacity Crush rating Bigfoot Price
2.5 inch 24x24 P242425 576 50 lbs. 82,000 41,000 500 Request a Quote
2.5 inch 30x30 P303025 900 79 lbs. 100,000 50,000 500 Request a Quote
3 Inch: Custom Composite Pads
Thickness Shape Size (Inches) Part Number Square Inches Weight Vertical Load Capacity 45 Degree Load Capacity Crush rating Bigfoot Price
3 Inch 24x24 P242430 576 60 lbs. 112,000 56,000 600 Request a Quote
3 Inch 30x30 P303030 900 93 lbs. 120,000 60,000 600 Request a Quote
3 Inch 30 PR3030 693 73 lbs. 98,000 49,000 600 Request a Quote
3 Inch: Premium Wood Pads
Thickness Shape Size (Inches) Part Number Weight Bigfoot Price Order
3 inch 24x24 W242430 40 lbs. Request a Quote Call to Order
3 inch 30x30 W303030 62 lbs. Request a Quote Call to Order
3 inch 30 WR3030 47 lbs. Request a Quote Call to Order

Features

Surfaces Handles Special Features

Standard Surface

Our standard surface is smooth for easy interaction with the outrigger foot and is easy to clean before storing for the next job.

Safety Grind

Rough grind of the pad for non slip surface on Black or Safety Orange Custom Composite.

Big Grip

The engineered design of the safety grips greatly reduces the chance of slipping by interlocking when stacked. Big Grip also digs into the ground if there are icy or slippery conditions.

Recess for Floats

Milled into the pad, custom sized to your float size on Black or Safety Orange Custom Composite.

Custom Logo

Casting your logo, a unit number, or a phone number directly into your pad clearly identifies who and to what unit the pad belongs. Available on Birch and Composite Pads.

Added Edge Color for Safety

Added color provides an important element of visibility for your crews and also helps train their eye on that last pad still left on the ground before it’s inadvertently left behind. Paint also adds one more layer of sealer on the wood.

Added Water Seal Application

Our waterproofing wood sealers prevent water damage. The coating resists mildew and UV damage. Over the past 32 years, we’ve perfected this process using only the best wood sealers available.

Bigfoot Lock Pad

The interlocking outrigger pad system allows two pads to lock in place with each other, preventing shifting or sliding and providing at least twice as much thickness at half the weight when lifting the pads. This feature can be used on pads of different dimensions allowing users to create an outrigger system that is optimized for safety and efficiency.

Nylon Rope (Our Standard)

Nylon is the strongest of all ropes in common use. It is used for absorbing shock loads because it has the ability to return to its original length after being stretched. It also has abrasion resistance, plus the yellow makes it easier to identify the pad.

Internal Pad Handles

Handles that are milled directly into and out of the pads eliminate the need for external handle materials and provide plenty of room for a gloved hand to grasp.

Safety Chain Handles

Some operators prefer the strength and stability of a metal chain. Available for heavy duty pad sizes 3” and up, these handles are rated at 3,100 lbs.

Metal Handles

Stainless Steel is strong, durable and guarantees long-lasting results.

LED Twilight Pad Light

Illuminating your work zone at night provides safety to everyone on the job site. Easily identifying your outrigger placements tells everyone where not to walk (or trip)! The lights are magnetic, waterproof, and come with a rechargeable battery and USB cable. Game changer!

Guardian Glow Strip

Glow strips provide up to 8-10 hours of illumination from just 20 minutes of natural light exposure. Strips conform to multiple surfaces and add another layer of worksite safety.
